HD-H212 Lithium Battery Crush & Nail Penetration Test Chamber
Premium Products
HD-H212 Lithium Battery Crush & Nail Penetration Test Chamber
1
2
3
4
5

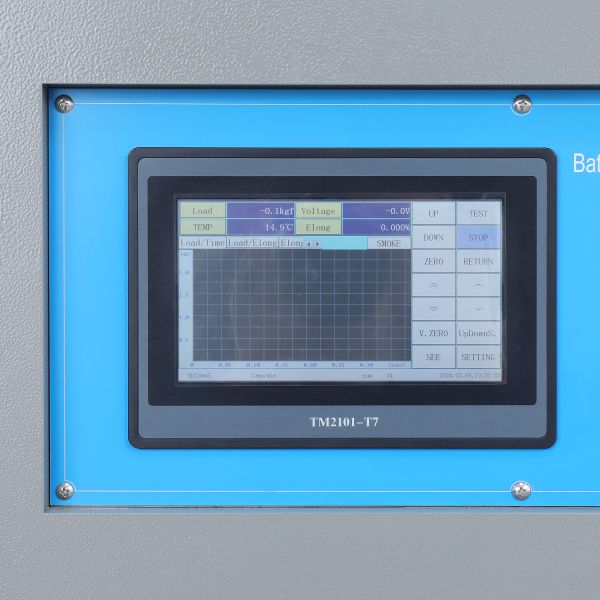

Control Method :PLC Touch Screen Control
Equipment Weight :135Kg
Extrusion Head :Extrusion Head Area ≥20cm²
Extrusion Degree :Extrusion Pressure Reaches 13±0.2kN, Keep for 1min
Place of Origin :Guangdong, China
MOQ :1
power :200w
Accuracy :/
warranty :1 Year
Force Value Display :Touch Screen Display
Brand Name :HAIDA
Application :Lithium battery testing, New energy battery testing, Lead-acid battery testing, other battery testing
Force Range :1~20kN
Protection Class :Ip56
Voltage :220 V
Extrusion Stroke :250mm
Inner Box Size :520*450*560mm (W*D* H*)
Equipment Dimensions :800*700*1720mm (W*D* H*)
Type :Testing Machine
customized support :OEM, ODM
Power Supply :AC220V; 20A
Contact Now
Product Description
HD-H212 Battery Crush & Nail Penetration Test Chamber
Battery Crush & Nail Penetration Test Chamber is suitable for simulating the squeezing and acupuncture of various batteries during use, transportation, storage or disposal of household waste.
Technical parameters
Item
Description

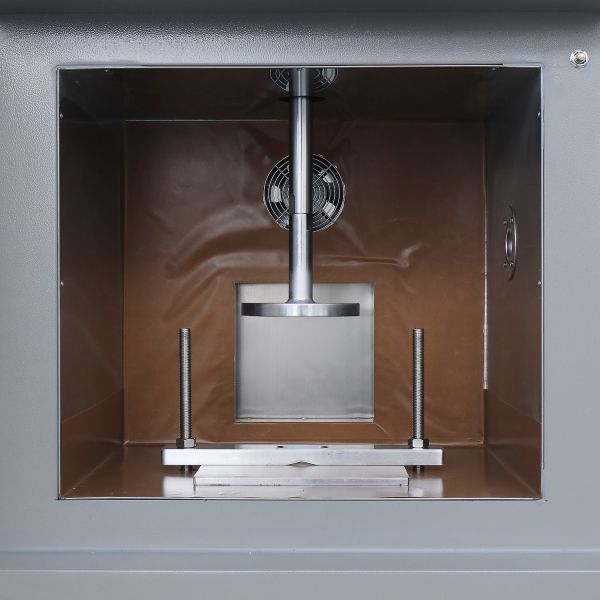

Inner Box Size (W*D*H)
520*450*560mm
Equipment Dimensions (W*D*H)
800*700*1720mm
Force Range
1~20kN
Force Value Display
Touch Screen Display
Extrusion Stroke
250mm

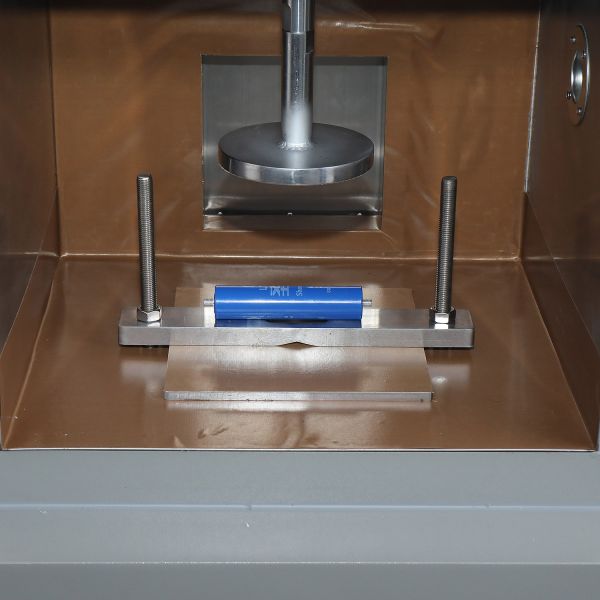

Extrusion Head
Extrusion Head Area ≥20cm²
Extrusion Degree
Extrusion Pressure reaches 13±0.2kN, Keep for 1min
Test Space (W*D*H)
200*200*200mm
Steel Needle
φ2mm~φ8mm High Temperature Resistant Steel Needle,
the Length is 100mm (Can be Specified)
Internal Material
1.2mm SUS304 Stainless Steel Plate
External Material
1.5mm A3 Steel Plate and Painted
Pressure Relief Door Size
200*200mm
Smoke Exhaust Pipe
Diameter φ100mm, Located at the Back of the Box
Control Method
PLC Touch Screen Control
Drive Mode
Servo Motor Drive
Equipment Weight
135Kg
Power Supply
AC220V; 20A
Box Door
a Single Door Opens to the Left,
and an Explosion-proof Chain is Installed on the Door

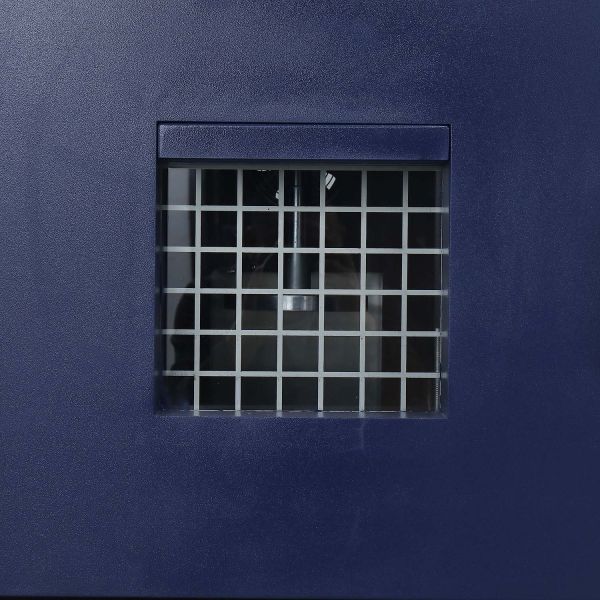

Observation Window
The Size is 250*250mm Two-layer Tempered Glass
The Transparent Window is Equipped with Stainless Steel Mesh
Details
Company Information
Haida is a test machine manufacturer over than 20+ years. Providing OEM & ODM service for customers. With the persistent efforts of all staff, Haida owned4 factorieswith total 60,000+ square meters, 15+ branch offices covers South China, North China, East China, Central China and Northwest China, as well over20+ overseas after-sales service sites covers Southeast Asia, Europe, North America and the Middle East with 28,000+ customers.
SEE WHAT COMPANY YOU WILL WORK WITH?
Professional Manufacturer of various kinds of testing equipmentover20 years.
Completely Production Line. From Raw Material to Delivery, all links are under our control. The quality can be assured.
ISO 9001:2015Quality Management System Certificate.
OEM/ODM Service. Just tell us your idea! Our R&D Team is standing by…
Our Marketing Investigation Department will send Marketing Research Report to you each season.
We are trusted by SGS, INTERTEK, HST, COFCO, ESC, KBMC, LENOV-O, PANASONI-C, EMC, etc.
We accept 100% inspection.
Guarantee Period: 365 days, After Sales Service Department provides professional service with you, any questions, just contact us.
PARTNERS
Our Services
Haida Equipment Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.
We can offer operation video and English operation muanual.
