IPX1 & IPX2 Water Drip Test Chamber Automatic Environmental Rainfall Chamber for Waterproof Testing for Electronic test

Brand Name : haida

Place of Origin : Guangdong, China

MOQ : 1

Price : $2,088-3,788

Protection Class : IP55

Voltage : 380 V

Internal dimension : 1000*1000*1000mm (W*D*H)

External dimension : 1500*1200*1800mm (W*D*H)

Test duration : 1~9,999min, adjustable

Chamber material : Stainless steel #304, Waterproof Toughened glass observation window

Sample turntable : Diameter 500mm

Turntable rotation speed : 1~10r/min, height can be adjusted

Water drop speed : 1 or 3mm/min, can be adjusted

Drip box size : 800*800mm

Distance from drip box : 200mm

Water drop hole diameter : 0.4mm

Distance from water drop hole : 20mm

Turntable angle : 15° inclined on either side of vertical in two perpendicular planes

Safety protection : Leakage, short circuit, motor over temperature

Contact Now

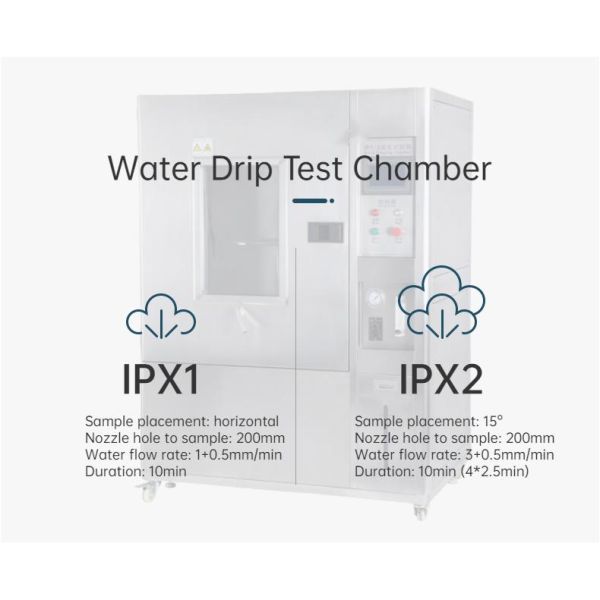

IPX1 & IPX2 Water Drip Test Chamber
Automatic Environmental Rainfall Chamber for Waterproof Testing of Electronic Components
Product Overview
This professional IPX1 and IPX2 water drip test chamber provides reliable waterproof testing for electronic devices and components, ensuring compliance with international standards for water resistance and durability.
Product Images
IPX1 & IPX2 Water Drip Test Chamber Automatic Environmental Rainfall Chamber for Waterproof Testing for Electronic test IPX1 & IPX2 Water Drip Test Chamber Automatic Environmental Rainfall Chamber for Waterproof Testing for Electronic test IPX1 & IPX2 Water Drip Test Chamber Automatic Environmental Rainfall Chamber for Waterproof Testing for Electronic test IPX1 & IPX2 Water Drip Test Chamber Automatic Environmental Rainfall Chamber for Waterproof Testing for Electronic test IPX1 & IPX2 Water Drip Test Chamber Automatic Environmental Rainfall Chamber for Waterproof Testing for Electronic test IPX1 & IPX2 Water Drip Test Chamber Automatic Environmental Rainfall Chamber for Waterproof Testing for Electronic test
Technical Specifications
Specification Value
Warranty 1 year
Customized Support OEM, ODM
Place of Origin Guangdong, China
Brand Name Haida
Model Number HD-E710-1
Power Electronic
Internal Dimension 1000*1000*1000mm (W*D*H)
External Dimension 1500*1200*1800mm (W*D*H)
Test Duration 1~9,999min, adjustable
Chamber Material Stainless steel #304, Waterproof Toughened glass observation window
Sample Turntable Diameter 500mm
Turntable Rotation Speed 1~10r/min, height can be adjusted
Water Drop Speed 1 or 3mm/min, can be adjusted
Drip Box Size 800*800mm
Distance from Drip Box to Specimen Surface 200mm
Water Drop Hole Diameter 0.4mm
Distance from Water Drop Hole 20mm
Turntable Angle for IPX2 15° inclined on either side of vertical in two perpendicular planes
Safety Protection Device Leakage, short circuit, motor over temperature protection

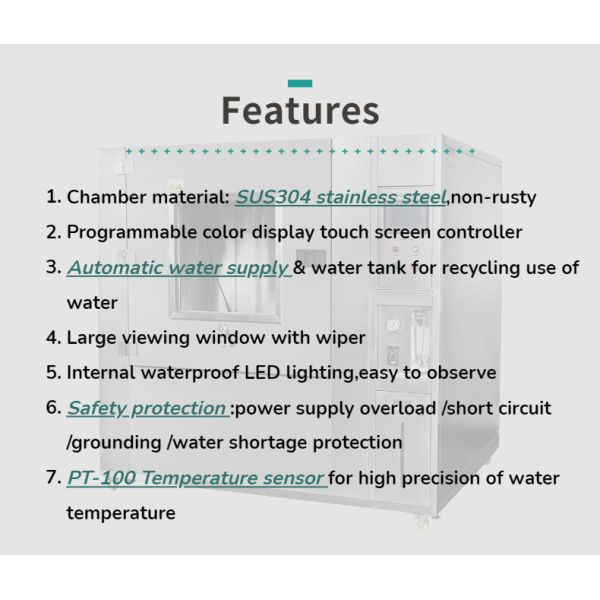

Key Features
  • Precise IPX1 and IPX2 waterproof testing capabilities
  • Adjustable test duration from 1 to 9,999 minutes
  • Variable water drop speed control (1 or 3mm/min)
  • Adjustable turntable rotation speed (1-10r/min)
  • Stainless steel construction for durability
  • Comprehensive safety protection systems
  • Clear observation window for monitoring tests
Manufacturer Information
Haida International Equipment - Professional manufacturer of environmental testing equipment with extensive experience in quality assurance and testing solutions.
IPX1 & IPX2 Water Drip Test Chamber Automatic Environmental Rainfall Chamber for Waterproof Testing for Electronic test IPX1 & IPX2 Water Drip Test Chamber Automatic Environmental Rainfall Chamber for Waterproof Testing for Electronic test

Product Tags:

IPX1 IPX2 waterproof test chamber



automatic environmental rainfall chamber



electronic waterproof testing equipment
