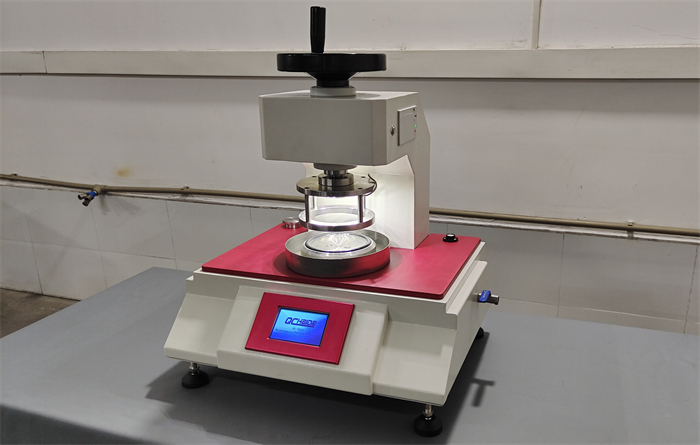

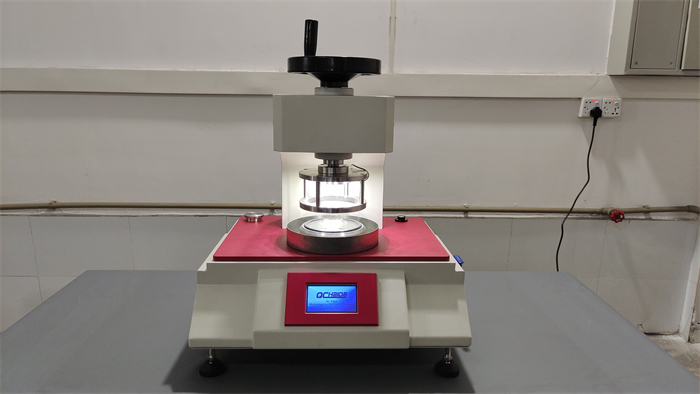

Textile Water Resistance Test Hydrostatic Pressure Tester Fabric Tensile Testing Equipment
PRODUCT DESCRIPTION:
It is used for testing the water permeability resistance to the compact cloth such as canvas, linoleum, tenting, tarpaulin, non-woven fabrics, rain resistant dress fabrics, coating fabrics and so on.
DESIGN CRITERIA:
AATCC 127 DIN 53886 JIS L1092
TECHNICAL PARAMETER :
| Measuring range | 500pa-200kpa |
| Accuracy | 0.2%FS |
| Unit | Pa, Kpa, mmHg, cmH2O |
| Water column pressure increasing rate | 10-300 cm/min |

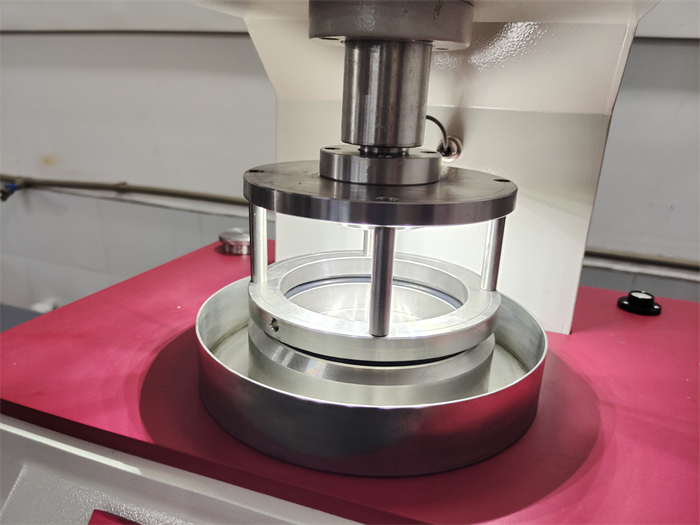

| Sample chuck area | 100cm2 |
| Display unit | Pa |
| Water tank capacity | 3.7Ld |
| Extarnal Dimensions | 550x400x500 |
| Weight | 50kg |
| Power source | 1phase, AC220± 10%, 50 Hz |
Accessories:
| Standard accessories | 1Set | 100cm2 testing sets |
| 1Set | Calibration plate |
| 1pc | Rubber ring |
| 1pc | Power line |
| Optional accessories | Optional | Fixtures of other testing area |
Feature:
1. Touch screen control with English menu
2. Seven test units can be switched,Pa, kPa, mmHg, mmH2O, cmH2O, PSI, Bar
3. Five working modes: Pressurization, constant pressure and constant timing, constant pressure timing, water seepage and leakage, deflection test
4. Built-in LED lighting device for easy observation. The water drop recording button, which can record multiple water drop pressure results
5. Built-in thermal printer
Application Industries:
Canvas Coated fabrics Non-woven fabrics
Rain-proof Fabrics hood fabric Geotextiles
